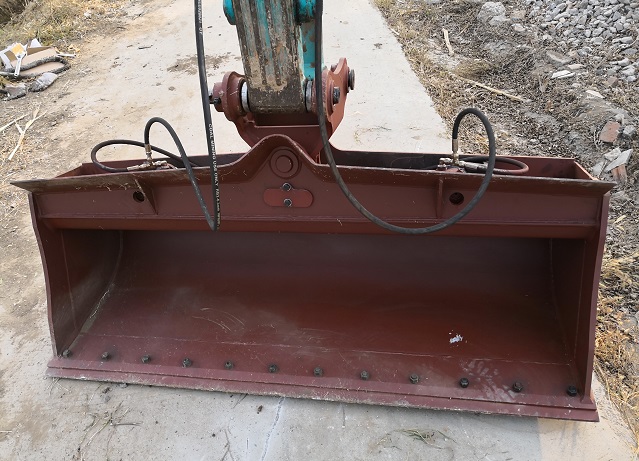

Pulọọgi koto garawa-excavaor
garawa koto pulọgi le ṣe alekun iṣelọpọ nitori wọn pese to iwọn 45 ite osi tabi sọtun.Nigbati o ba rọra, trenching, igbelewọn, tabi mimọ inu koto, iṣakoso yara yara ati rere ki o gba ite ti o tọ lori gige akọkọ.garawa titẹ si wa ni ọpọlọpọ awọn iwọn ati titobi pupọ lati baamu ohun elo eyikeyi ati pe wọn ṣe apẹrẹ lati baamu awọn agbara iṣẹ ti excavator.Awọn egbegbe Bolt ti wa ni ipese pẹlu rẹ.
pulọgi garawa fidio
Lati le ṣaṣeyọri flt pipe diẹ sii, bonovo le ṣe iwọn iwọn ni ibamu si awọn iwulo awọn alabara.
1-80 toonu
OHUN elo
HARDOX450.NM400,Q355
Awọn ipo iṣẹ
Idominugere, awọn iṣẹ ilẹ ati idena keere gbogbogbo, ati bẹbẹ lọ.
Tiltable igun
90°

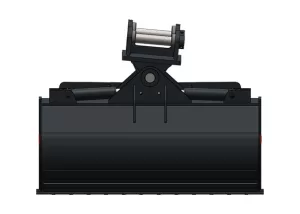

Bonovo tilt koto garawa le mu iṣẹ-ṣiṣe pọ si nitori wọn pese to iwọn 45 ite osi tabi sọtun.Nigbati o ba rọra, trenching, igbelewọn, tabi mimọ inu koto, iṣakoso yara yara ati rere ki o gba ite ti o tọ lori gige akọkọ.garawa titẹ si wa ni ọpọlọpọ awọn iwọn ati titobi pupọ lati baamu ohun elo eyikeyi ati pe wọn ṣe apẹrẹ lati baamu awọn agbara iṣẹ ti excavator.Awọn egbegbe Bolt ti wa ni ipese pẹlu rẹ.
Sipesifikesonu
| Tonnage | Iwọn/mm | Angel / ìyí | Ṣiṣẹ titẹ / Mpa | Silinda agbara/N | Silinda qty | Ìwọ̀n/kg |
| 1-2T | 900 | 45 | 18 | 420 | Nikan-silinda | 140 |
| 3-4T | 1200 | 45 | 18 | 710 | Double-silinda | 200 |
| 5-7T | 1200 | 45 | 18 | 710 | Double-silinda | 350 |
| 8-11T | 1500 | 45 | 21 | 1040 | Double-silinda | 550 |
| 12-14T | 1700 | 45 | 25 | 1240 | Double-silinda | 880 |
| 15-18T | 1700 | 45 | 26 | 1680 | Double-silinda | 950 |
| 20-25T | 1800 | 45 | 26 | 2190 | Double-silinda | 1380 |
| 28-35T | 2000 | 45 | 28 | 2260 | Double-silinda | 1600 |
| 40-45T | 2200 | 45 | 28 | 2680 | Double-silinda | Ọdun 1850 |
Awọn alaye ti wa ni pato
Gba ara awo oloju meji, awo gige Atẹle jẹ simẹnti, iṣẹ naa jẹ afiwera si ohun elo NM400, awo gige Atẹle jẹ iwọn ila opin counterbore, ati awọn boluti ti wa ni pamọ sinu awo gige, eyiti ko ni ipa lori ilẹ alapin. ṣiṣẹ.
Ayafi fun awọn toonu kekere, iwọn wa ni isalẹ 1000mm ati iwọn ti ni opin nipasẹ iwọn ti silinda ẹyọkan.Gbogbo awọn miiran lo meji silinda.Mejeeji le ṣe aṣeyọri osi ati ọtun 45 ° oscillation.
Silinda epo gba ohun elo edidi ti o wọle, eyiti o ṣe ilọsiwaju igbesi aye iṣẹ ti silinda.
Ohun elo ohn
