egungun garawa sieve garawa factory

Bucket Skeleton jẹ Yiyọ Apata ati idoti laisi Ile.Awọn ohun elo miiran pẹlu Awọn Apata tito lẹsẹsẹ ti Iwọn Kan pato lati Piles.

Egungun garawa ohun elo

Awọn buckets Skeleton wa ti ṣe apẹrẹ lati kọlu gbogbo Awọn oriṣiriṣi Awọn ohun elo lati Iparun si Awọn akopọ Iṣura Iṣura.A Ṣeto Apẹrẹ Egungun lati Ṣeto fun Kere bi daradara bi Awọn nkan Nla lati ṣaṣeyọri Awọn ibi-afẹde Rẹ.

pe wa


Lati le ṣaṣeyọri flt pipe diẹ sii, bonovo le ṣe iwọn iwọn ni ibamu si awọn iwulo awọn alabara.

skeleton garawa 重量

1-50 Toonu

OHUN elo

HARDOX450.NM400,Q355

Awọn ipo iṣẹ

loo si excavation ti jo alaimuṣinṣin ohun elo ni ijoba, ogbin, igbo, omi itoju ise agbese.
skeleton garawa容量

Aye iboju

60-120MM

Standard garawa |Excavator & Backhoe Asomọ |BONOVO

Iṣe akọkọ ti garawa Skeleton ni Yiyọ Apata ati idoti laisi Ile.Awọn ohun elo miiran pẹlu Awọn Apata tito lẹsẹsẹ ti Iwọn Kan pato lati Piles.Awọn buckets sieve wa ti ṣe apẹrẹ lati kọlu gbogbo Awọn oriṣiriṣi Awọn ohun elo lati Iparun si Awọn akopọ Iṣura Iṣura.A Ṣeto Apẹrẹ Egungun lati Ṣeto fun Kere bi daradara bi Awọn nkan Nla lati ṣaṣeyọri Awọn ibi-afẹde Rẹ.

Sipesifikesonu

Toonu Iwọn/mm GBA Eyin Aye iboju/mm garawa Pinni Ìwọ̀n/KG
2T 24''-610mm J200 jara 5pcs 70*70 To wa 90
5T 30'-762mm J200 jara 5pcs 70*70 To wa 180
8T 30'-762mm J220 jara 5pcs 80*80 To wa 250
12T 36''-915mm J250 jara 5pcs 80*80 To wa 390
15T 42'-1067mm J250 jara 6pcs 90*90 To wa 590
20T 48'-1220mm J350 jara 6pcs 90*90 To wa 900
25T 48'-1220mm J400 jara 6pcs 100*100 To wa 1160
30T 54''-1372mm J450 jara 5pcs 100*100 To wa 1390



Awọn alaye ti wa ni pato

Garawa eti weld

Eti garawa



Ipo ti eti garawa gba ileke alurinmorin olona-Layer lati rii daju agbara gbogbogbo ti eto naa, dinku iye titẹ sii ti ooru, dinku abuku, dinku iṣeeṣe ti awọn abawọn, ati bushing gba ilana alaidun apapọ lati rii daju ifọkansi. ti awọn garawa eti apo ati ki o ga konge.

Mini Excavator Buckets 1-6 Toonu|Excavator asomọ |BONOVO

Eyin Adapter



Alurinmorin ohun ti nmu badọgba ehin jẹ igbona akọkọ nipa awọn iwọn 200 ṣaaju ki o to alurinmorin, awọn eyin ẹgbẹ ni ẹgbẹ mejeeji ti wa ni welded pẹlu ọbẹ ẹgbẹ, ati ilẹkẹ alurinmorin naa ti gbooro si asopọ pẹlu gige akọkọ ati awo arc, eyiti o ṣe idaniloju agbara gbogbogbo ti ojuomi akọkọ ti ara garawa, ati awọn eyin garawa ni ẹgbẹ mejeeji ni okun sii lakoko ilana iṣẹ.



garawa sieve

Apapo iboju



Ni kikun alurinmorin ti wa ni lilo laarin awọn yika, irin ati awọn odi rinhoho ti awọn egungun garawa, ati awọn ìwò agbara ti awọn grille rinhoho ni o dara, ati awọn yika, irin yoo ko loosen ati kiraki lẹhin sise fun igba pipẹ.Igbesi aye iṣẹ ti o gbooro sii.



Ohun elo ohn

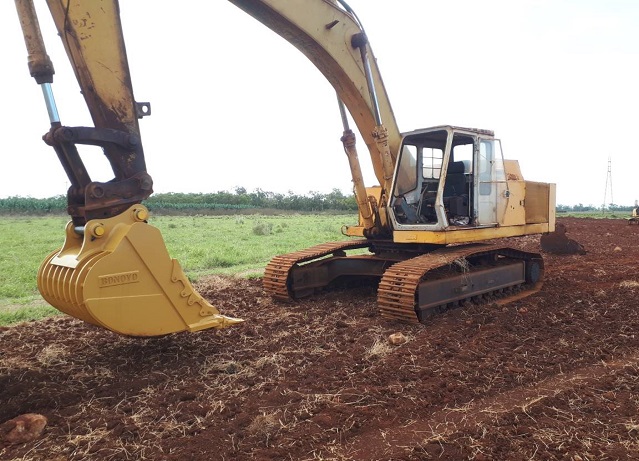

IMG_0380

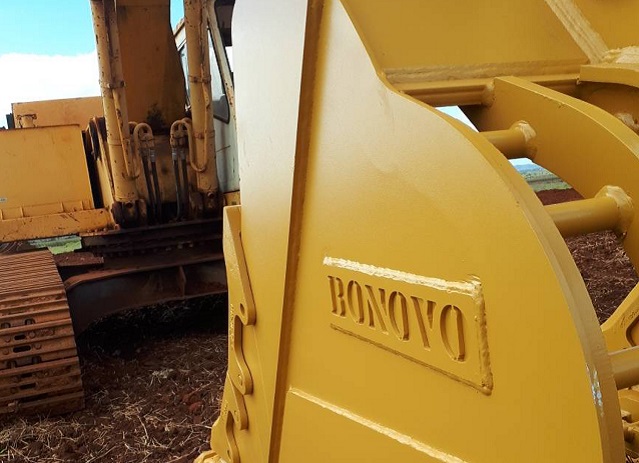

IMG_0383
garawa egungun
