BONOVO Undercarriage Parts Excavator Track Shoes For Sale
Bonovo supplies a complete range of triple grouser excavator track shoes from 300mm to 1200mm for all standard and non-standard sizes. We also supply assembled track groups with the chain/ track shoe configuration to suit your requirements.
For excavator, we stock a full range of single grouser track shoes in all standards widths to meet every requirement. All excavator track shoes have a heavy duty baseplate to increase service life.
Overall Specifications
| Material | 25MnB |
| Finish | Smooth |
| Colors | Black or yellow |
| Pitch | 135mm |
| Application | Excavator,Loader,Bulldozer.etc. |
| Surface Hardness | HRC37-49 |
Reference brands and models
|
Komatsu |
PC40, PC60-5-6-7, PC100, PC120, PC130, PC240, PC200-1-3-5-6, PC220-1-3-5, PC300-3-5, PC4001-3-5, D20, D30, D31, D50, D60, D75, D80 (D85), D155 |
|
Hitachi |
EX40, EX60, EX150, EX100M, EX100,EX120 , EX150, EX200-1-2-3, EX300-1-3-5, EX400, UH08, UH07 |
|
Caterpillar |
E110B, E200B (E320), E240 (MS180), E300B, E330, D3C, D5, D5B, D5D, D6C, D6D, D6H, D7G, D8K, D8N,D9 |
|
Daewoo |
DH220, DH280, R200, R210 |
|
Kato |
HD250, HD400 (HD450), HD500, HD550, HD700 (HD770), HD800, HD820, HD850, DH880, D1020, HD1220 (HD1250), HD1430, DH1880 |
|
Kobelco |
SK07N2, SK07-7SK200, SK220, SK300, SK320 |
|
Sumitomo |
SH120, SH200, SH280, SH300, SH400 |
|
Mitsubishi |
MS110, MS120, MS180 |
|
Samsung |
SE55, SE210 |
Applicable for all track type machines
How to Choose Shoe Width Wisely?
Equip your machine to handle the condition of the specific environment, using the narrowest shoe possible that still provides adequate flotation and function.
A shoe that is too narrow will cause the machine to sink. During turns, the back end of the machine slides, causing excess material to build up on top of the shoe surface which then falls into the link-roller system as the machine continues to move. Tightly packed material built up on the roller frame may cause reduced link life due to the link sliding across the packed material, which may also cause the carrier roller to stop turning;
However, a slightly wider shoe will give better flotation and accumulate less material because the material is farther away from the link-roller system. But if you choose shoes that are too wide, they may bend and crack more easily, cause increased wear on all components, may cause premature dry joints, and may loosen shoe hardware.

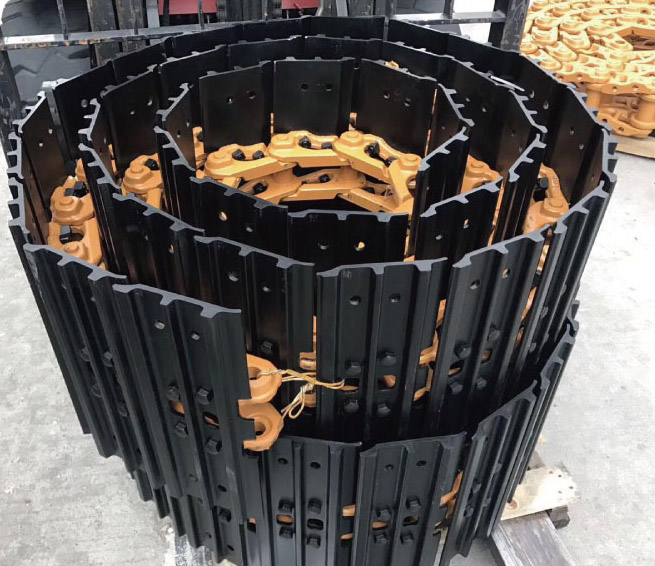

LCL package

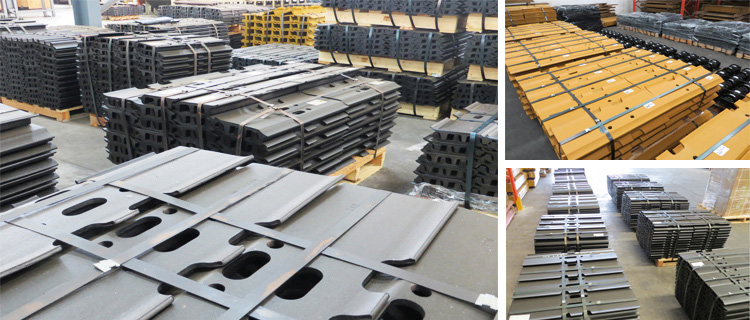

Warehouse & Stock
