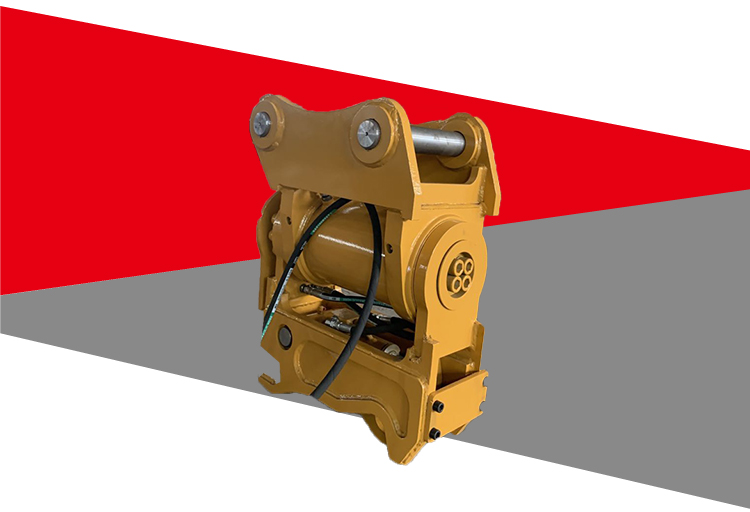

motor quick hitch (0)

Tilting Quick Coupler

Bonovo Tilting Coupler with all the advantages of the Multi-Lock quick coupler, giving you increased flexibility and asset utilization.Total tilting angle of 180 degrees allows efficient shaping of gradients and cambers without needing to re-position the excavator.High quality hydraulic actuator gives solid angular stability.High quality hydraulic kit design for smooth operation and control.Compatible with all major brands of machines and attachments.Ranger style coupler for fast and simple attachment interchange.Coupler automatic locking system is constantly visible from the cab for increased safety and reassurance.Available to suit machines from 3 to 24 tonnes.

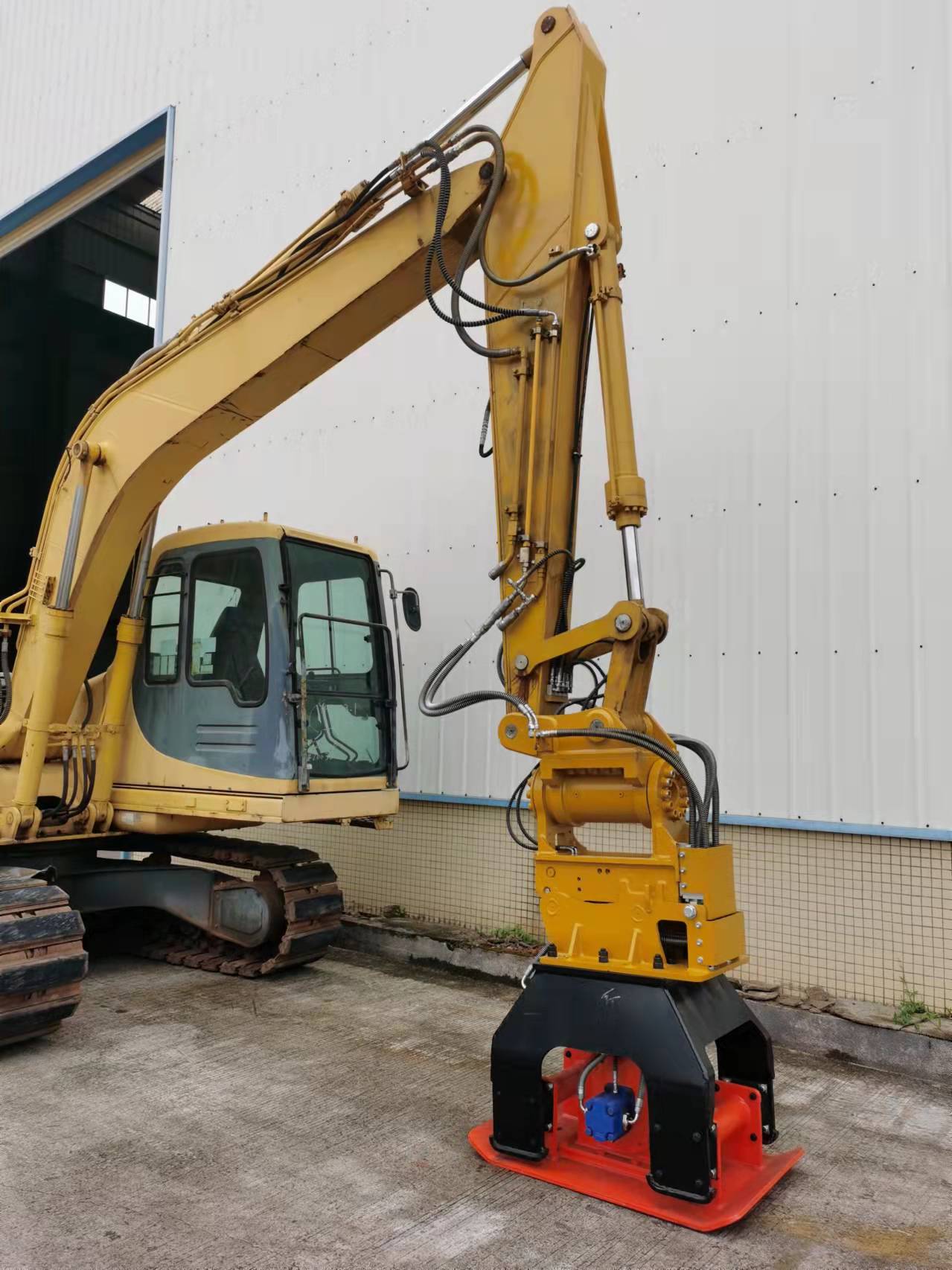

倾斜快换2

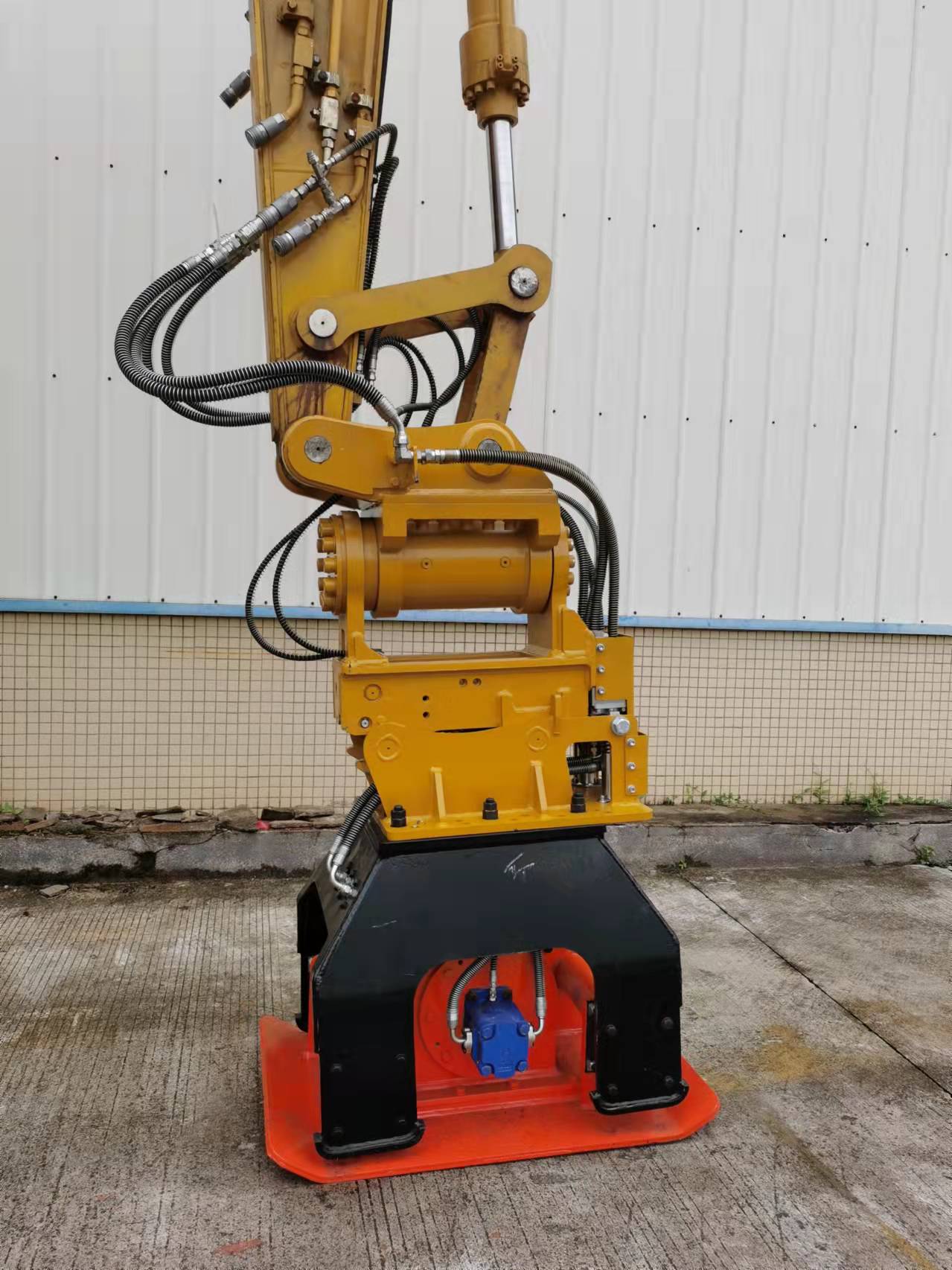

倾斜快换4

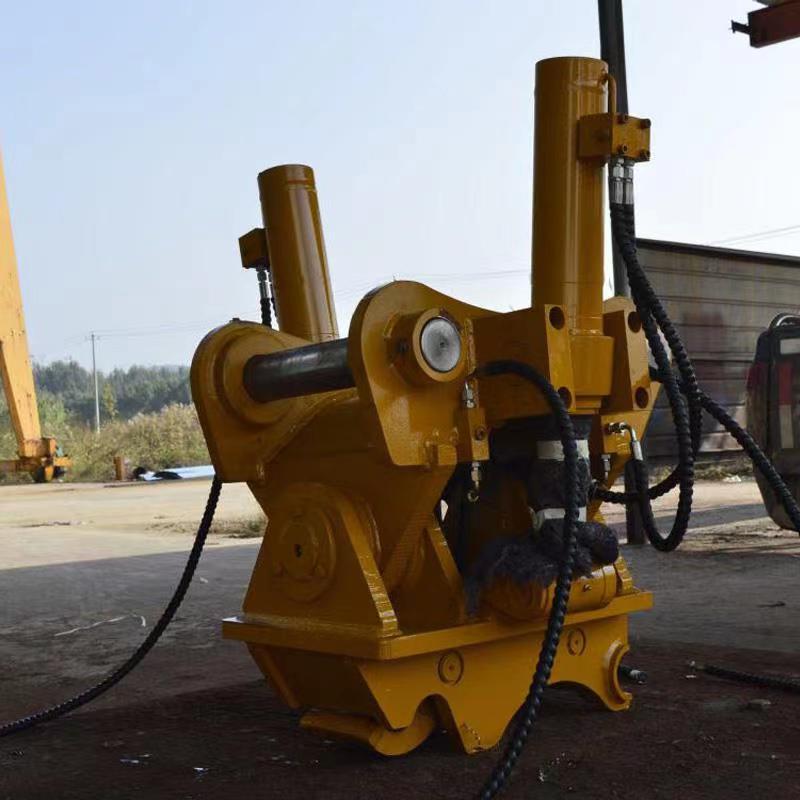

倾斜快换3

Part Number Excavtor Weight(Tonnes) Ccoupler Model Fixed Pin Centres (mm) Base Width(mm) Total Tilt Approx Weight(kg)
QC45 PT-7 44720 QC45 218-358 150 180° 153
QC50PT-7 44784 QC50 235-365 160 180° 159
QC50PT-8 44784 QC50 275-375 180 180° 215
QC65 PT-9 44909 QC65 355-430 220/250 134° 326
QC70/71 PT10 15-18 QC70/71 370-465 250 134° 424
QC80 PT10 20-25 QC80 385-530 300 134° 592
QC80 PT11 20-25 QC80 385-530 300 134° 747
