In the world of excavation and construction, efficiency and adaptability hold the utmost importance. A crucial element that greatly enhances the fluidity of operations is the quick coupler—a device that simplifies the attachment process for excavator equipment. Now, let us delve deeper into the intricate steps of installing a manual quick coupler onto an excavator, explaining how to install quick coupler on excavator while ensuring peak performance and safety throughout the process.

Installing a Quick Coupler on an Excavator:

1.Unpackaging and Initial Preparation:

Begin by unpackaging the manual quick coupler, ensuring all components are accounted for.
Remove the attachment pins, which should be hand-tightened. Safely store them to prevent damage.

2.Lowering the Bucket Link:

Lower the bucket link between the couplers to facilitate mounting.
Carefully insert the pin, avoiding contact with the ground to prevent debris accumulation.

3.Aligning and Inserting the Pin:

Align the bolt hole on the pin with the coupler's mounting point.
Use the outer hole to ensure proper alignment, then insert the bolt and tighten it by hand.

4.Mounting the Coupler onto the Bucket Link:

Mounting the coupler onto the bucket link allows for easy pivoting and attachment.
Insert the pin, leaving room for shims if necessary to ensure a secure fit.

5.Fitting Shims (if necessary):

BONOVO's Mechanical Quick Coupler provides shims of various sizes to close gaps between the coupler and excavator arm.
Select the appropriate shim size and securely insert it to achieve a tight fit.

6.Tightening the Bolts:

Once the coupler is mounted securely with shims, tighten the bolts using the provided tools.
Ensure the nylon element of the nut is fully past the end threads to prevent loosening during operation.

7.Final Check:

Conduct a thorough inspection to ensure all bolts are securely tightened.
Verify that the coupler is firmly attached and ready for use.

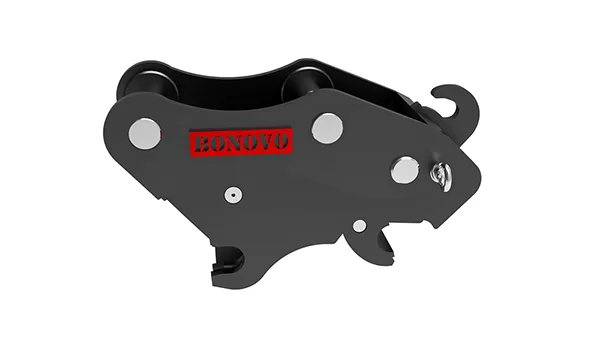

BONOVO Mechanical Quick Couplers:

BONOVO's Quick Couplers are meticulously engineered to provide efficient and reliable linking solutions for a wide range of excavation equipment. With models tailored for excavators and loader weights ranging from 1 ton to 45 tons, our couplers offer unparalleled versatility and compatibility.

Featuring a range of pin sizes from 25 millimeters to 120 millimeters, our couplers ensure seamless integration with various excavator attachments, enhancing operational efficiency and versatility on job sites of any scale.

From effortless installation to steadfast connections, BONOVO's Quick Coupler is your trusted partner for maximizing productivity and ensuring job site safety.
