BONOVO Mini Excavator Buckets 1-6 Tons
Tonnage: 1-6 tons
Width: 450-630 mm
Material: Q355/NM400/Hardox
Application: Used for digging narrow cable trenches, pipe culverts or drains, soil, sand, clay etc.
In order to achieve a more perfect fit, Bonovo can customize the size according to the needs of customers.

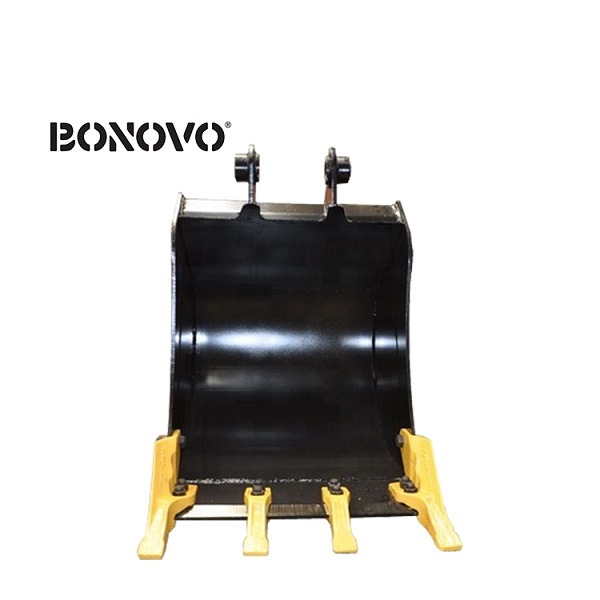

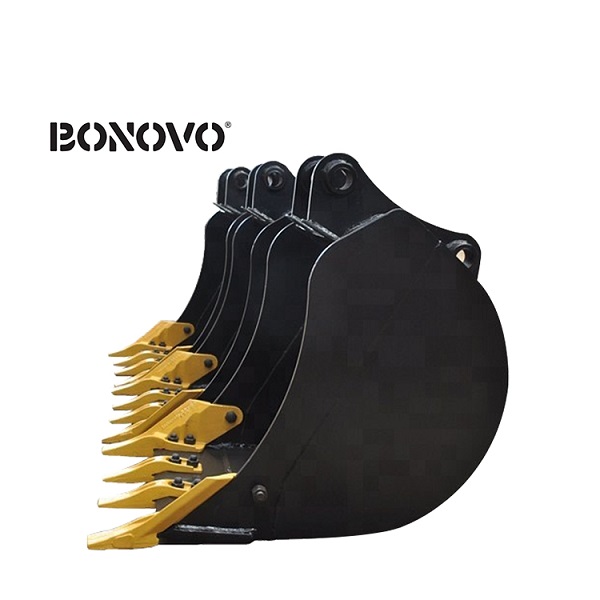

Mini excavator buckets
This mini bucket is designed for small excavator digging and backhoeing. Perfectly adapted to various brands of excavators and backhoes. It is primarily used for general applications and moderately abrasive materials such as dirt, loam, gravel and clay.
Make Perfect Fit is always Our Team‘s Aim. BONOVO Promise You the Best Level Steel in China for Our Bucket. With Over Ten Years Welding Experience Welders and other Workers Striving for Perfection on Every Details, BONOVO Keep Providing a Large Quantities of Strong Bucket with Best Cost Performance Globally.
Specification
| Tonnes | Width | capacity | Bucket teeth/Gear seat | quantity | Side teeth/Card guard | quantity | Shaft diameter | weight |
| 1-3T | 450 | 0.06 | 1U3202 119-3204-20 | 4 | DH55 | 1 | 30-35 | 65 |
| 4-6T | 630 | 0.18 | 1U3202 119-3204-20 | 5 | DH55 | 1 | 40-45 | 150 |
Details of our specifications
Bucket Ear
The position of this mini excavator bucket ear adopts multi-layer welding bead to ensure the overall strength of the structure, reduce the amount of heat input, reduce the deformation, reduce the probability of defects, and the bushing adopts the integral boring process to ensure the concentricity of the bucket ear sleeve and higher precision.

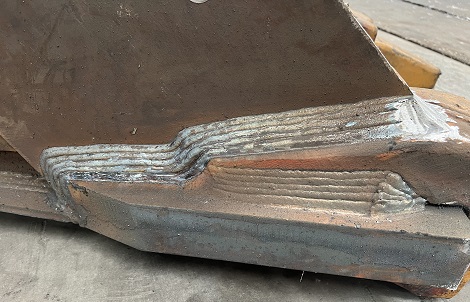

Tooth Adapter
The tooth adapter welding is first hotter about 200 degrees before welding, the side teeth on both sides are welded with the side knife, and the welding bead is extended to the connection with the main cutter and the arc plate, which ensures the overall strength of the main cutter of the bucket body, and the bucket teeth on both sides are stronger during the working process.

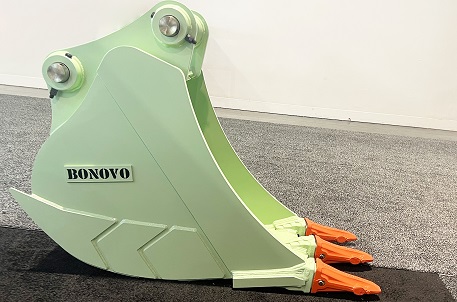

Painting
Difference colors can be chosen as per request to fit different machines. Before painting, sand blasting process will be also used to be prepared for the better appereance. Two times painting are used to enhances color durability.
