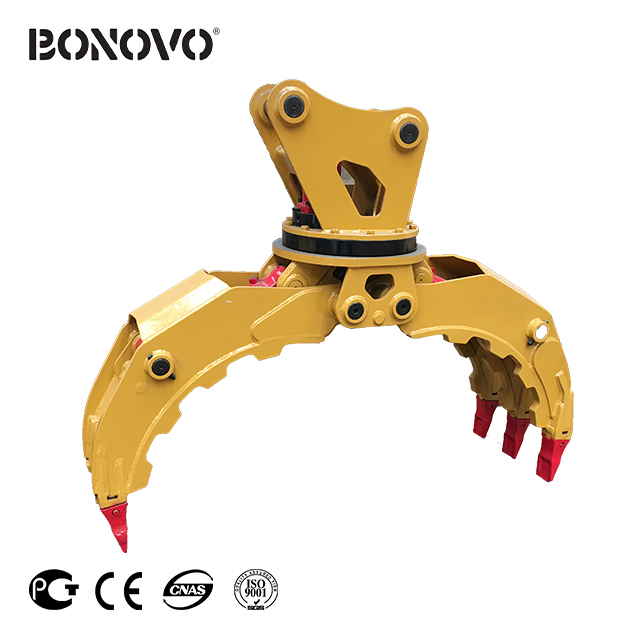

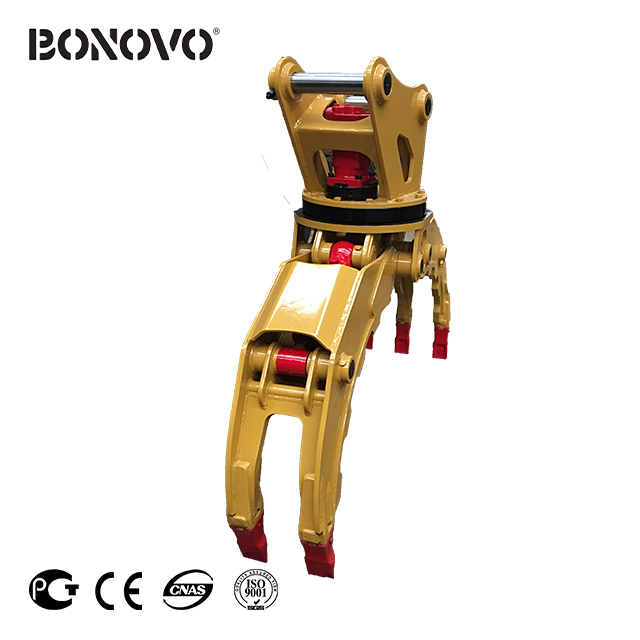

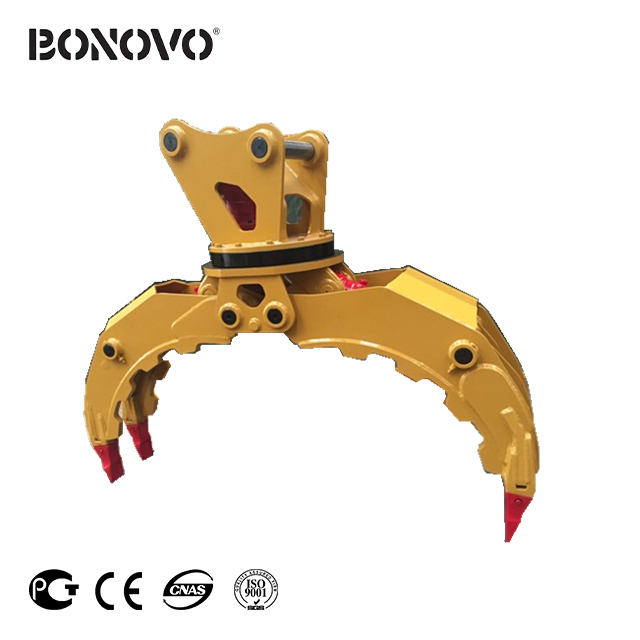

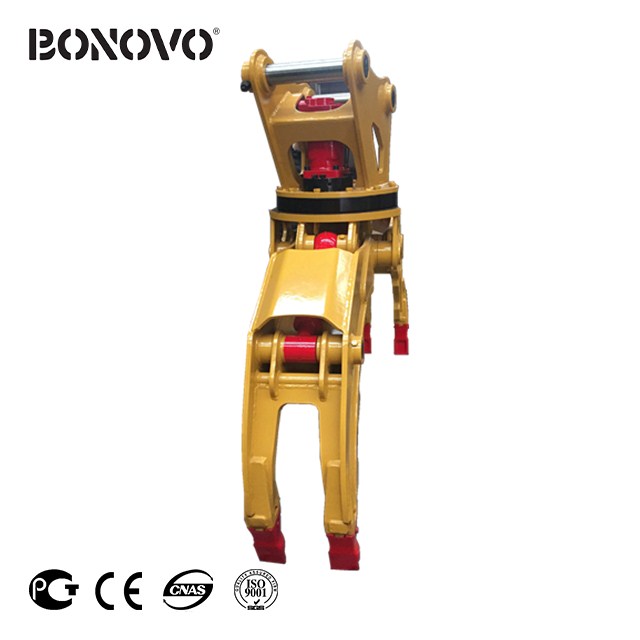

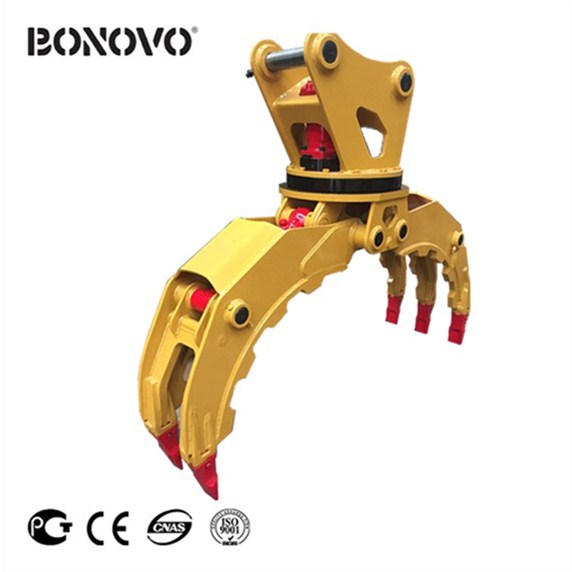

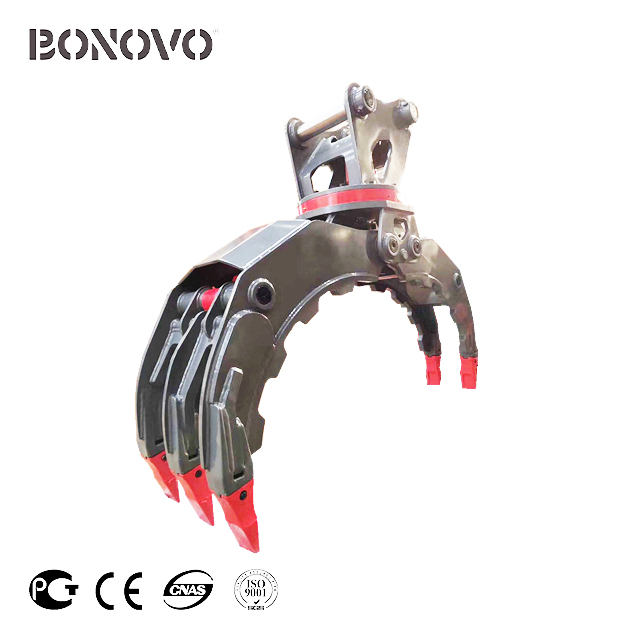

Hydraulic 360 degree rotary grapple from BONOVO factory with excellent aftersales service
Excavator Range: 4-50T
Rotation Degree：360°
Max Opening：1300-2500mm
Recommended Applications: Fit for all opetaions where there need grappling and loading, such as stone, timber, waste, tube, operations, garden and stone laying projects.
In order to achieve a more perfect fit, Bonovo can customize the size according to the needs of customers.
Bonovo Hydraulic Rotating Grapples for 4-50 Tonne Excavators Built Tough By Bonovo using High Strength Steels to withstand the harshest of conditions. The hardness & design of the structure absorbs extreme strains when it is subjected to excessive stresses.
The Hydraulic Rotating Grapples are designed and Built for land clearing, Waste Materials Handling, Demolition & Rock Break Wall Construction applications.
Designed & manufactured with Extreme Closing Pressures to ensure minimal load loss, and Widest Jaw Opening in its class which improves operator productivity.
Bonovo Hydraulic Rotating Grapples are manufactured with thicknesses, reinforcements and components suitable to increase its sturdiness and durability.
Commonly used tonnage parameters:
Bonovo 360 Degree Rotary Hydraulic Grapple could work by clockwise or anticlockwise,rotation speed can be controlled by operator,special rotary gears are used to prolong lifespan and reduce the cost, fit for all operations where needs grappling and loading, such as stone, timber,waste,tube operations, garden and stone laying projects.
| Model | BRHG50 | BRHG80 | BRHG120 | BHRG200 | BRHG300 | BRHG400 | |
| Weight | Kg | 300 | 390 | 740 | 1380 | 1700 | 1900 |
| MAX OPENING | mm | 1300 | 1400 | 1800 | 2300 | 2500 | 2500 |
| Operating Pressure | Kg/m² | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 | 180-200 |
| Set Up Pressure | Kg/m² | 170 | 180 | 190 | 200 | 210 | 250 |
| Operating Flux | L/Min | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 |
| Suitable excavator | Ton | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 |
