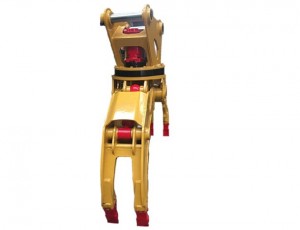

hydraulic 360 degree rotary grapple
Rotary grapple: Two sets of hydraulic valve blocks and pipelines need to be added to the excavator. The hydraulic pump of the excavator is used as the power source to transmit the power. The power is used in two parts, one is to rotate and the other is to do grap work.
In order to achieve a more perfect flt, bonovo can customlze the size according to the needs of customers.
5-45 Ton
MATERIAL
HARDOX450,NM400,Q355
WORKING CONDITIONS
scrap handling applications, construction sites, disaster cleanup and demolition cleanup.
360 rotary grapple
hydraulic 360 degree rotary grapple : Two sets of hydraulic valve blocks and pipelines need to be added to the excavator. The hydraulic pump of the excavator is used as the power source to transmit the power. The power is used in two parts, one is to rotate and the other is to do grap work.
Specification
| Model | BRHG50 | BRHG80 | BRHG120 | BHRG200 | BRHG300 | BRHG400 | |
| Weight | Kg | 300 | 390 | 740 | 1380 | 1700 | 1900 |
| MAX OPENING | mm | 1300 | 1400 | 1800 | 2300 | 2500 | 2500 |
| Operating Pressure | Kg/m² | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 | 180-200 |
| Set Up Pressure | Kg/m² | 170 | 180 | 190 | 200 | 210 | 250 |
| Operating Flux | L/Min | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 |
| Suitable excavator | Ton | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 |
Details of our specifications

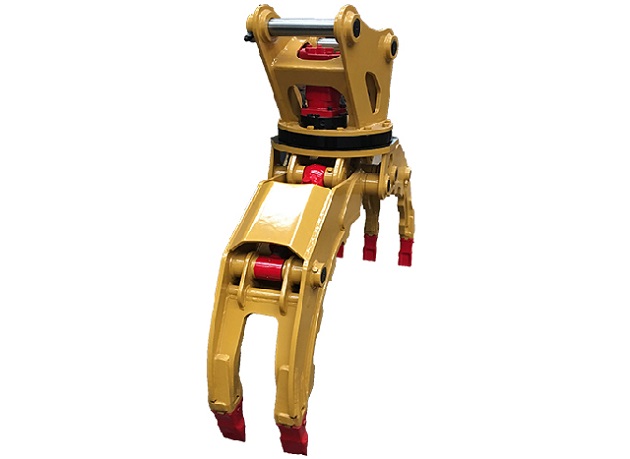

Swing part
The swing part is very important to the quality of grapple. A key component of the swing is the motor. We use M+S imported motors with good quality, great torque and long-term performance.

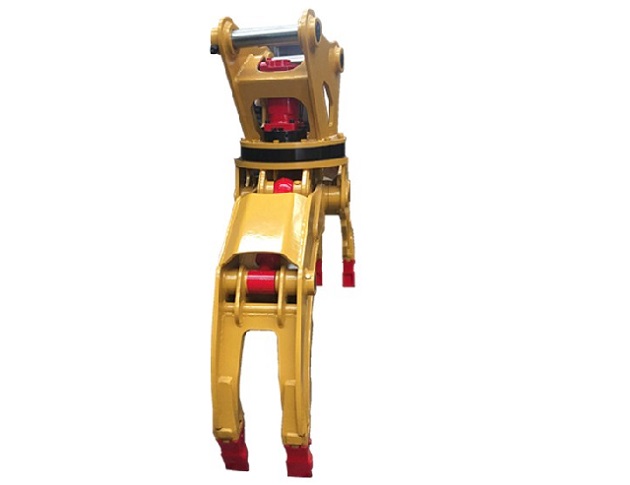

Grabbing part
The oil cylinder is stretched to grab and loosen. The wood grabber adopts double oil cylinders, which has greater grab force and more practical.
Features
1. Large opening width, small weight and high performance
2. The operator can control the rotation speed,Rotated clockwise and it can be rotated with 360 degrees
3. Large-capacity oil cylinder increase the snatch strength
4. The rotating gear used prolongs the life of the product and reduces maintenance costs
5. It can carry out clamping operations such as stone operations, wood sugarcane operations, waste operations, pipe operations, garden operations, and stone masonry projects.

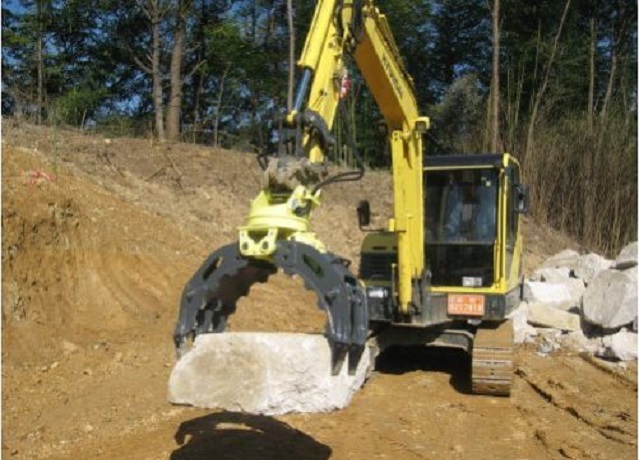

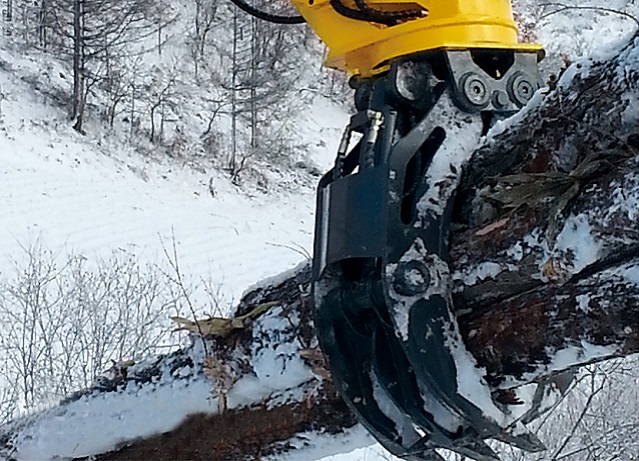

Application Scenario
