Hot Sale for Progressive Link Excavator Thumb – Hydraulic unrotary grapple from BONOVO, long working life for attachments business – Bonovo
In order to achieve a more perfect fit, Bonovo can customize the size according to the needs of customers.

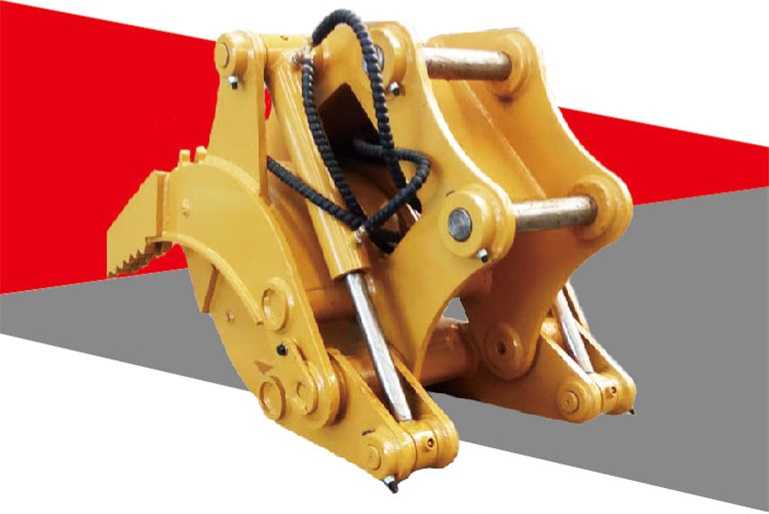

Hydraulic Grapple
BONOVO‘s Hydraulic Grapple has a large jaw opening that allows it to pick up large materials, and the hydraulic design of the grapple give it better grip, so it can grab large and uneven loads, increasing productivity and efficiency in loading cycles.
The Standard Hydraulic Grapple has the ability to handle large loads, making it ideal for site cleanup and material handling. But a Compact Version is also available when the job site has tight working spaces.
| Model | BHG10 | BHG30 | BHG60 | BHG80 | BHG120 | BHG200 | |
| Weight | Kg | 126 | 210 | 310 | 510 | 740 | 990 |
| MAX OPENING | mm | 540 | 710 | 730 | 754 | 980 | 1500 |
| Operating Pressure | Bar | 80-110 | 100-120 | 110-140 | 120-160 | 150-170 | 160-180 |
| Set Up Pressure | Kg/m² | 120 | 150 | 170 | 180 | 190 | 200 |
| Operating Flux | L/Min | 20-35 | 25-40 | 30-55 | 50-100 | 90-110 | 100-140 |
| Suitable excavator | Ton | 1-2 | 3-4 | 5-7 | 8-11 | 12-19 | 20-25 |
