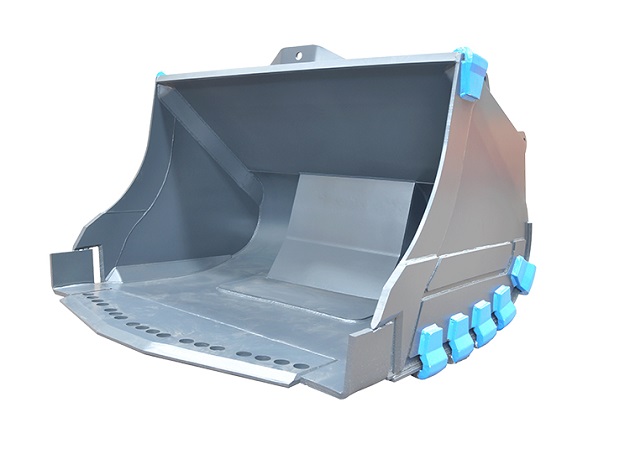

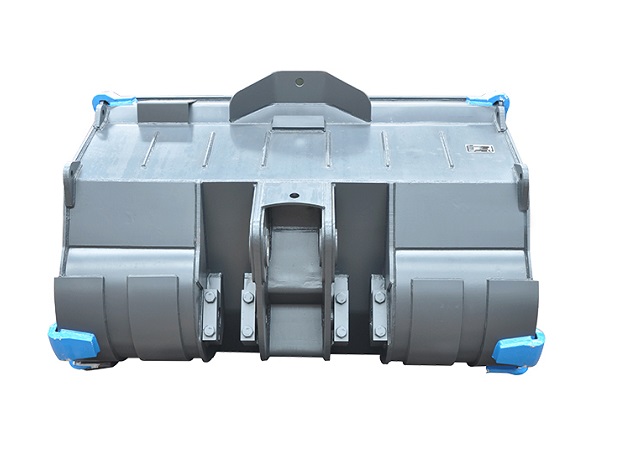

underground loader rock bucket
Bonovo Underground Loader Bucket is special for the scooptram for Mining. R1300，R1600,R1700，R2900, LH410, LH517, ST1030 buckets are very popular .Besides the bucket structure, BONOVO also supplies the replacement teeth system as well as the reinforced plans according to Customers’ Requirements
In order to achieve a more perfect flt, bonovo can customlze the size according to the needs of customers.
Loader Bucket
MATERIAL
HARDOX450.NM400,Q355
WORKING CONDITIONS
Capacity
2-10m³
Details of our specifications
Underground loader bucket CAT all series original drawing production.
The connection size adopts the boring process of the overall boring machine to ensure the accuracy of the connection size.
The materials are NM400, Q690 and Q355. Strong and wear-resistant,
Specification
| Part No. | Bucket Capacity(m³) | Width-Bucket（mm） | |
| R1300 | 243-5577 | 2.4 | 2155 |
| 186-9278 | 2.8 | 2185 | |
| 243-6143 | 3.1 | 2318 | |
| 243-6224 | 3.4 | 2518 | |
| R1600 | 227-4702 | 4.2 | 2723 |
| 203-1792 | 4.8 | 2723 | |
| 227-4704 | 5.6 | 2723 | |
| 227-4703 | 5.9 | 3018 | |
| R1700 | 256-0862 | 4.6 | 2689 |
| 255-9970 | 5 | 2689 | |
| 252-7194 | 5.7 | 2689 | |
| 226-5404 | 6.6 | 2689 | |
| R2900 | 303-8806 | 6.3 | 3176 |
| 249-4899 | 7.2 | 3176 | |
| 249-4892 | 8.3 | 3272 | |
| 249-4893 | 8.9 | 3472 |
