DIG-DOG DG18 1.8 Ton Mini Excavator
Model: DG18
Operation Weight: 1800KG
Engine: Laidong/Kubota/Yanmar
Standard configuration: 3-cylinder water-cooled engine, boom side swing, Retractable undercarriage, 4 Pillar FOPS Canopy. The hydraulic pilot operation, chassis hydraulic tensioning. Spare hydraulic tubing.
DG18 mini Excavator with Tailless small wing structure and boom-side-shift option, which can be used for narrow-space operation
tailless rotation, retractable chassis, deflective boom, first-class configuration, load pilot operating system, changeable rubber track, imported engine, environmental protection standard (Euro 5 ) Can be equipped with a fully enclosed cabin to provide a comfortable environment for work.
Specifications of DG18
About Weight
How will you transport your excavator? Make sure it isn’t too heavy for the setup you plan to use. Otherwise, you’ll cause too much strain to your hauling vehicle, or you won’t be able to move the excavator at all.
Overall Parameters of DG18
About Sizes:
All mini excavators are smaller than full-sized ones, but there are different sizes within the mini category. Some may still be too large for your job, while others may be too small.
To determine what size of excavator you need, you’ll have to evaluate your worksite. The excavator must be able to fit into the area that needs to be worked. This means it must be able to maneuver correctly, not just fit.
When looking at size, consider height, width, and length. Otherwise, you may end up with a dimension that doesn’t work.
| Machine model No. | DG18 | |
| Type of tracks | Rubber track | |
| Machine weight | 3968lbs/1800kg | |
| Bucket Capacity | 0.06m3 | |
| System Pressure | 18Mpa | |
| Max. grade ability | 350 | |
| Max.Bucket Digging Force | 14KN | |
| Max.Arm Digging Force | 10KN | |
| Operation type | Joystick poilt control | |
| Engine | Model | Laidong 3TE25 |
| Displacement | 1.532L | |
| Type | Water-cooled 3-cylinder diesel | |
| Max. Power | 18.4kW/2350r/min | |
| Max. Torque | 92.5N.m | |
| Overall Dimensions | Overall Length | 3865mm |
| Overall Width | 1050mm | |
| Overall height | 2270mm | |
| Chassis width | 1050mm | |
| Min. ground clearance | 210mm | |
| Cabin height | 2270mm | |
| Axle base | 1230mm | |
| Blade | Width | 1050mm |
| Height | 235mm | |
| Max.lift of dozer blade | 230mm | |
| Max.depth of dozer blade | 275mm | |
| Hydraulic system | Pump type | Gear pump |
| Pump capacity | 52.8L/Min | |
| Fluid Capacities | Hydraulic system | 17L |
| Fuel tank | 19L | |
| Motor | Traveling motor | Eaton OMB-160 |
| Swing motor | Eaton SW2.5K-245 | |
About Arm Length
Different excavators come with different arms. Since the arm is one of the most important parts of the excavator, make sure it will work for what you need it to do.
Consider your project and workspace. Will a standard arm do the trick? If not, find a size that works for you.
Excavator arms are available in long and extendable sizes. These allow for longer reach and higher dump height.
It won’t do you much good if your excavator can’t reach the container it’s supposed to dump stuff in, so make sure it’s the right size.
|
Working range |
Max.Digging Height | 3365mm |
| Max.Dumping Height | 2385mm | |
| Max.Digging Depth | 2050mm | |
| Max.Vertical Digging Depth | 1725mm | |
| Max.Digging Radius | 3860mm | |
| Min.Swing Radius | 1720mm | |
| Tail Swing Radius | 1125mm | |
| Swing System | Boom swing angle(Left/Right) | 750/450 |
| Swing Speed | 10~12rmp |
Variety of attachments for your choices

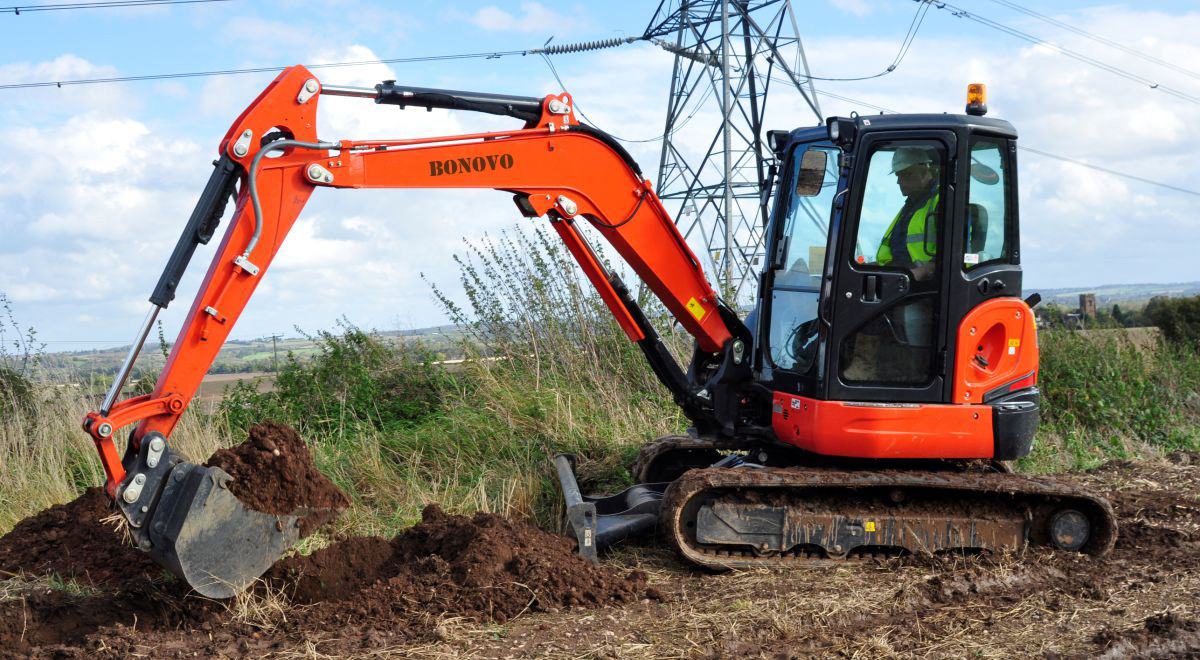

Applications
Product Details: Every Small Details Contribute to Big Difference!
- Euro 5 emisssion Yanmar engine

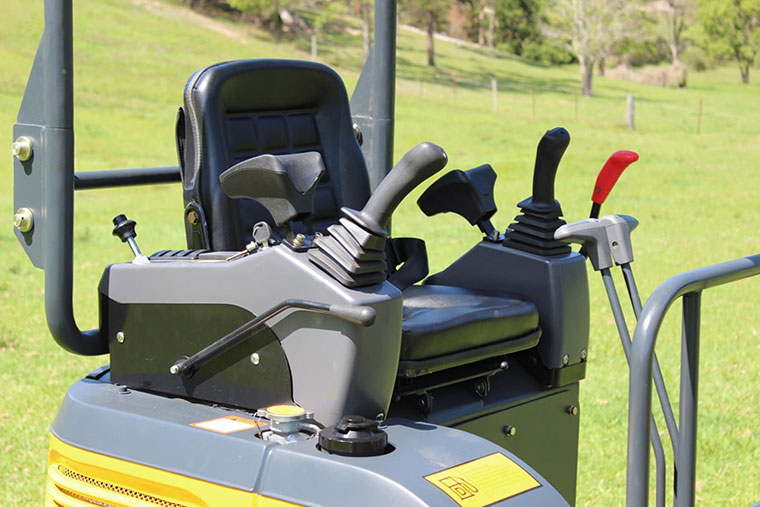

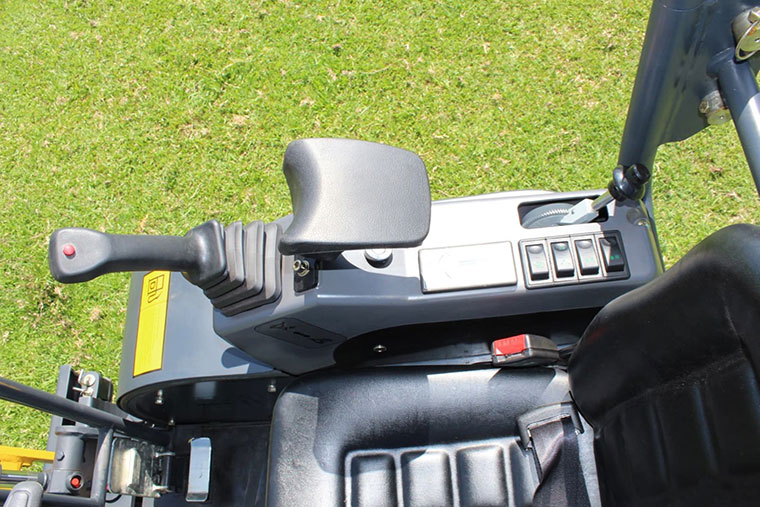

- Hydraulic pilot joystick located on both side of seat brings more comfortable operation
- Solid cast iron double counterweight gives more stable body
- Swing boom can support operator to go both indoor and outdoor working conditions

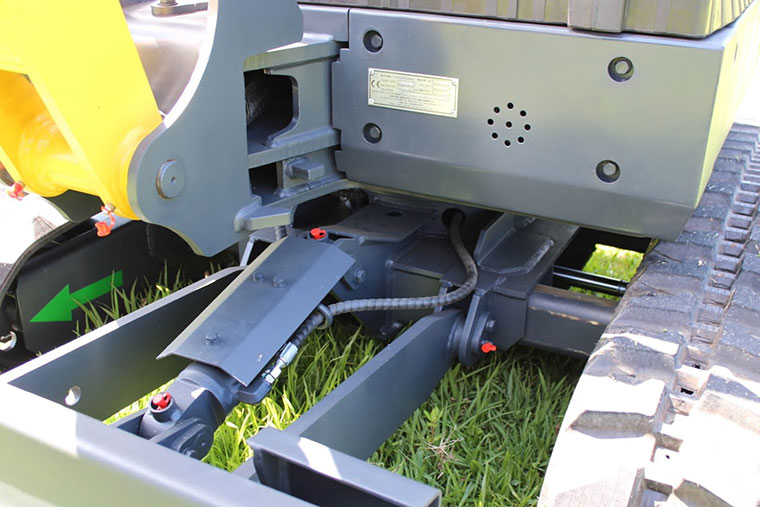

- Retractable undercarriage offers the adjustment function, easy for transportation

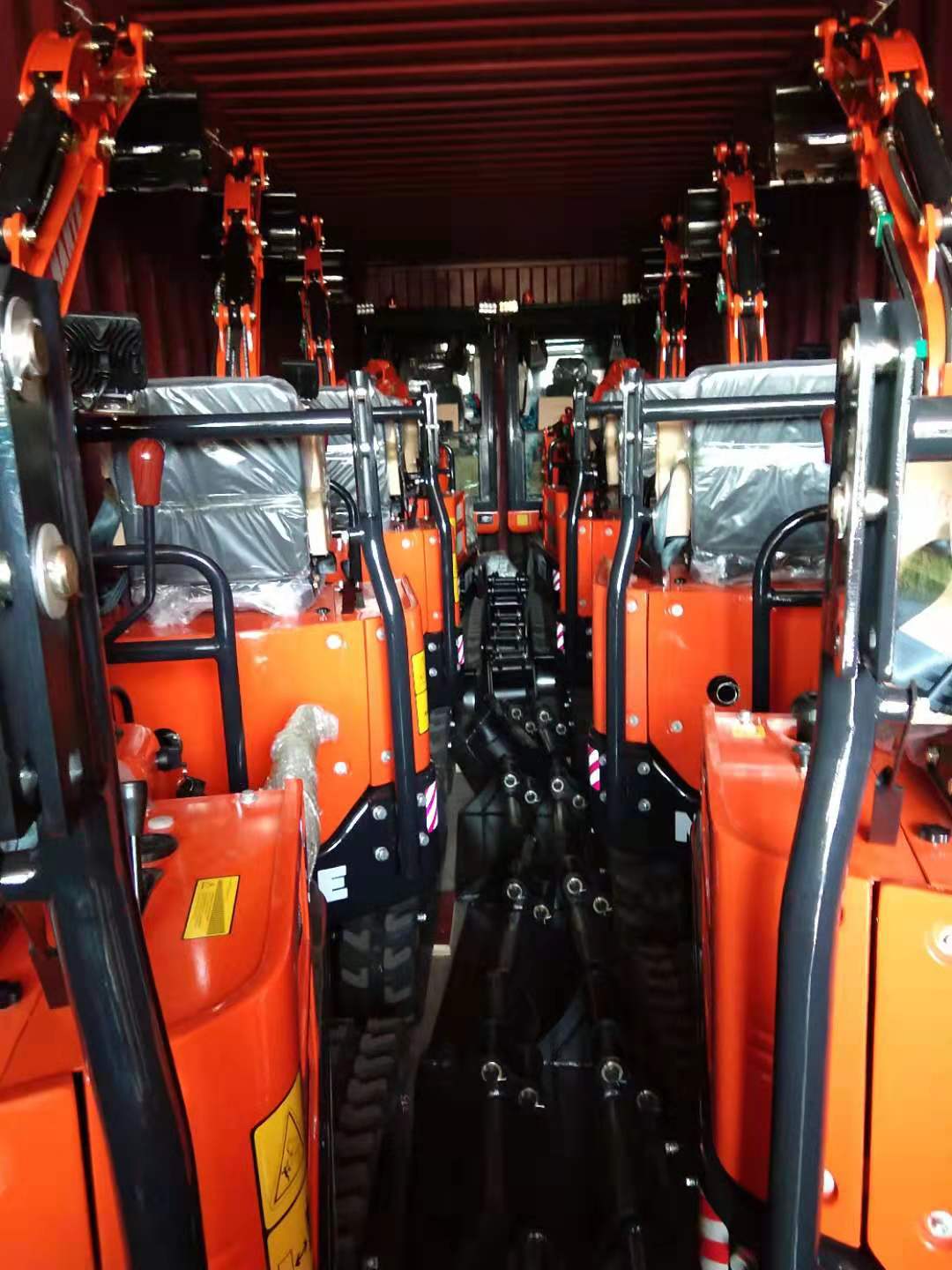

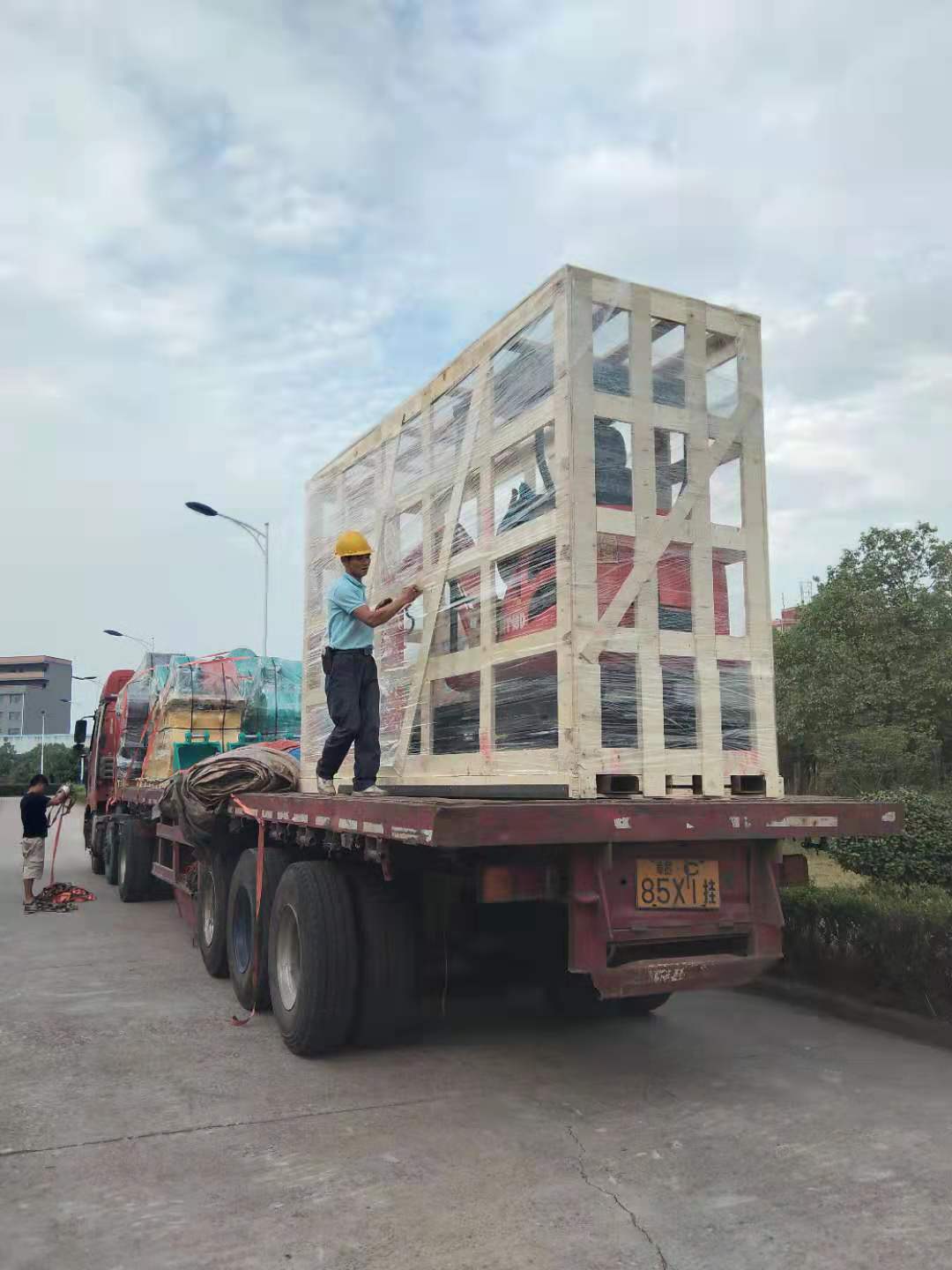

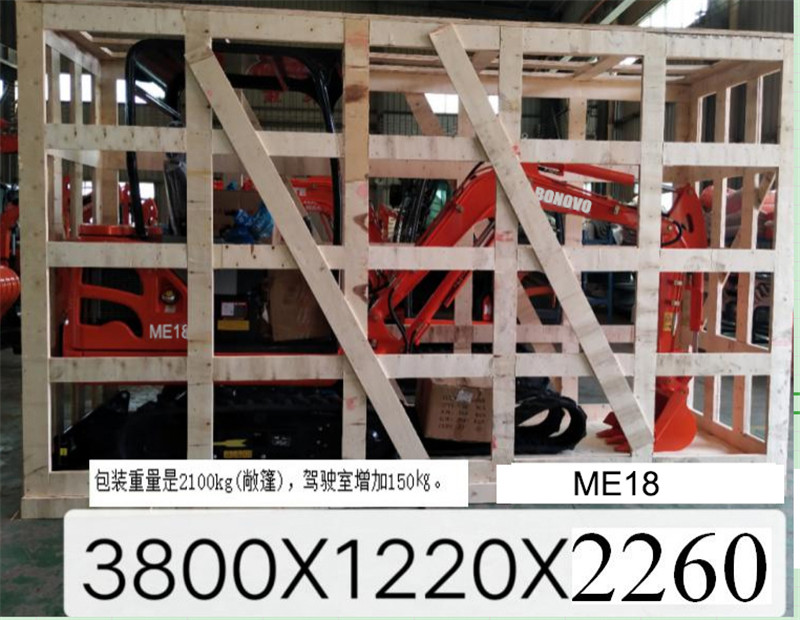

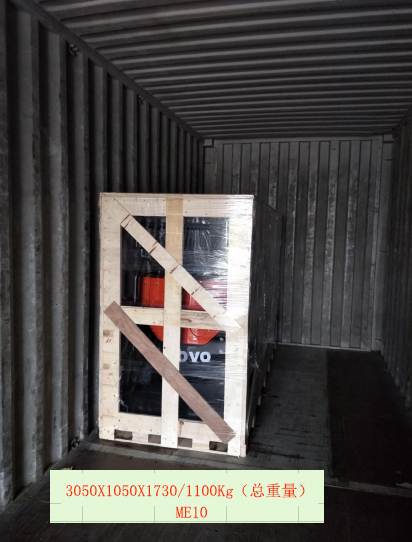

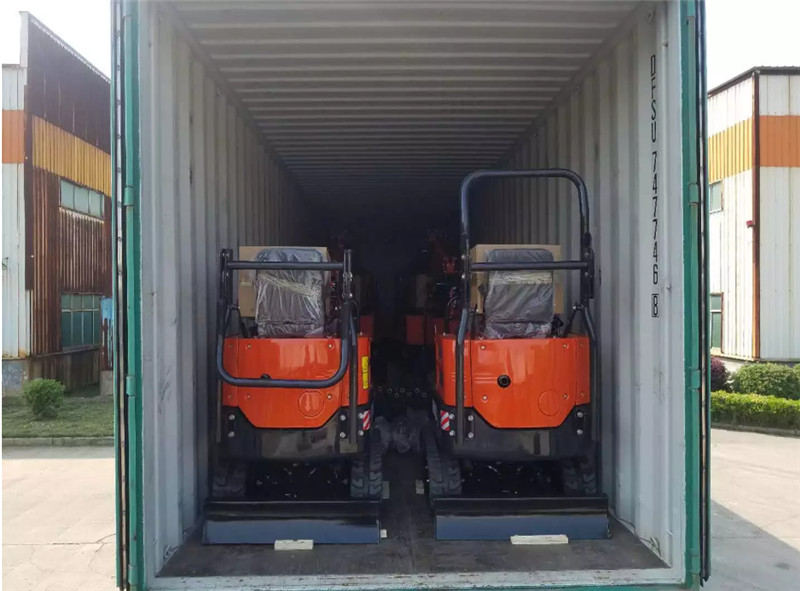

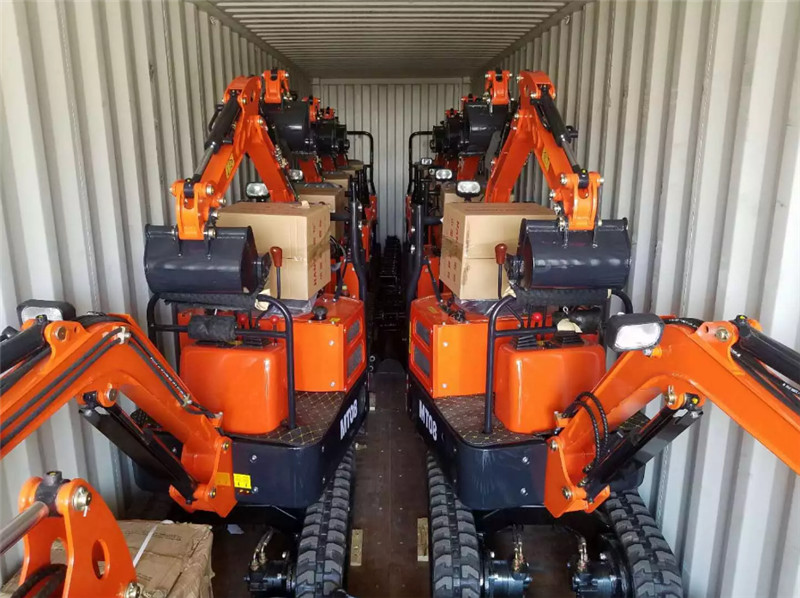

Package & Delivery
