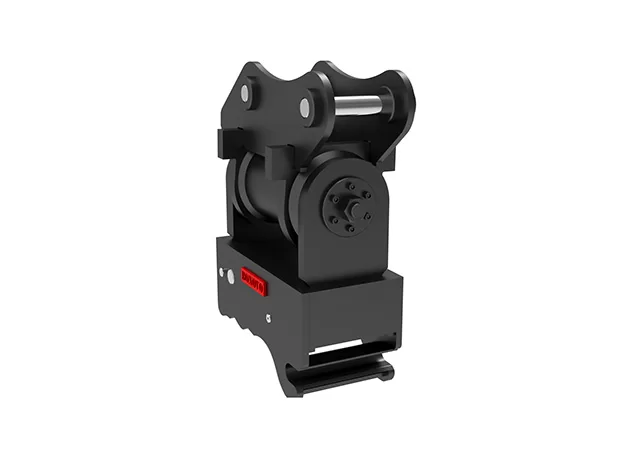

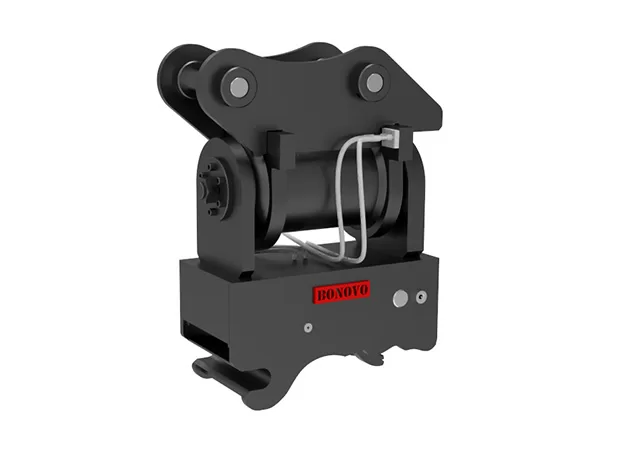

BONOVO Tilt Quick Hitch Coupler

Supply OEM & ODM Service

for machine weight: 3-24 ton


In order to achieve a more perfect flt, bonovo can customlze the size according to the needs of customers.

Tilt Quick Hitch Coupler | Excavator Attachments | BONOVO

3-24 Ton

MATERIAL

HARDOX450,NM400,Q355

WORKING CONDITIONS

Total tilting angle of 180 degrees allows efficient shaping of gradients and cambers .
Tilt Quick Hitch Coupler | Excavator Attachments | BONOVO

Tilting angle

180°

Specification

Unit Equipment(TON) Swing angle(°) Pressure(Bar) Oil Flow(L/min) Weight(Kg)
BTQC-20 1-2 180 210 3-6 60
BTQC-40 3-4 180 210 3-6 120
BTQC-60 5-6 180 210 6-12 160
BTQC-80 7-9 180 210 12-20 180
BTQC-150 10-18 134 210 24-30 420
BTQC-200 20-25 134 210 32-44 650

The BONOVO Tilt Quick Hitch Coupler

a revolutionary device that incorporates all the benefits of Multi-Lock quick couplers, providing unprecedented flexibility and asset utilization for modern excavator operations. Its core advantage is its 180-degree total tilt angle, a design that allows the excavator to easily handle slopes and cambers on a variety of complex terrains without unnecessary repositioning.

This connector features a high-quality hydraulic actuator ensuring solid angular stability under a wide range of angles and load conditions. Whether digging, loading or other operations, the BONOVO tilt quick hitch coupler ensures excavator stability and precision.

In addition, the high-quality hydraulic kit design is another highlight of BONOVO tilt quick hitch connectors. This design ensures smooth operation and control of the cooupler, reduces unnecessary vibration and deviation, and improves work efficiency. At the same time, the connector is compatible with all types of mainstream machines and accessories, further enhancing its applicability in various working environments.

All in all, the BONOVO tilt quick hitch connector not only inherits all the advantages of the Multi-Lock quick coupler, but also provides you with greater operational flexibility and asset utilization through its unique 180-degree tilt angle and high-quality hydraulic actuator design Rate. Whether you are digging, loading or other operations, the BONOVO tilt quick hitch coupler is the ideal choice.

Details of our specifications

Internal structure of swing oil cylinder

Latest swing oil cylinder to complete the tilting operation, adopts high-torque and high-load bearings, main components moving in a closed manner for a longer service life and a better sealing effect. Tilt angle can reach 180°

5T tilt excavator coupler

The oil cylinder of quick change adopts imported seals part, which have good sealing effect and longer lifespan.

Quick coupler pipeline

All the supporting pipelines are all packaging, and the customer can install it immediately after receiving , so as to solve the trouble of lack of installation accessories.

Application Scenario
