Amphibious Excavator 3 to 50 Tons
Pontoon for xcavator: 3-50 tons
Max Working water depth: 14 meters
Support Attachments: additional power, suction pump, Long arm, cleaning bucket, float, HPV tube.

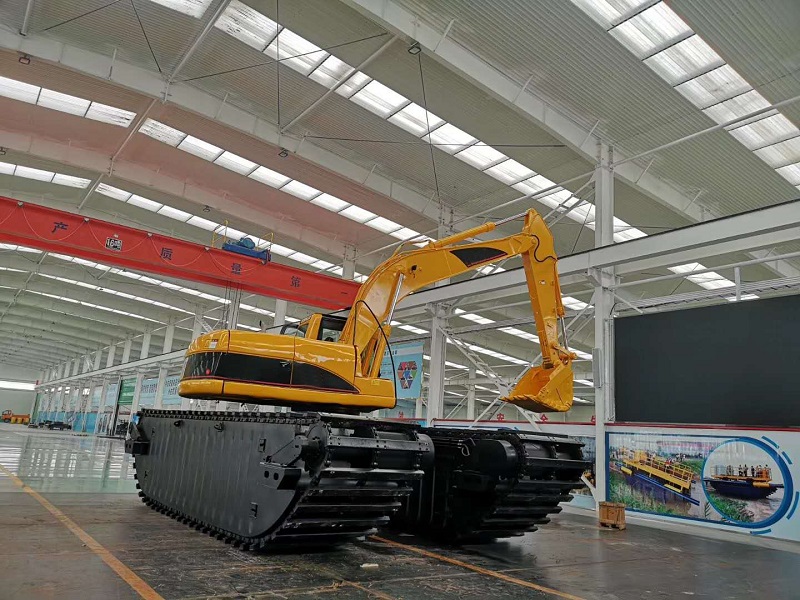

BONOVO Amphibious Excavator
Overview
An amphibious excavator is specially designed to work in swampy area, wetland, shallow water and all soft terrains with the ability to float on water. BONOVO well-designed amphibious pontoon/undercarriage has been widely and effectively applied for removing silty clay, clearing silted trenches, remove wood, swampland and shallow water operation where the traditional standard excavators have limits.
Applications:
With BONOVO amphibious pontoons /undercarriage, we have proved ourselves to customers with effective performance on the following areas:
1) Swamp land clearing at mining, plantation and construction area
2) Wetland restoration and reclamation
3) Flood prevention and control
4) Water diversion project
5) Transformation of saline-alkali and low-yield land
6) Deepening of canals, river channel and river mouth
7) Clearing of Lakes, shorelines, ponds and rivers
8) Digging trenches for oil& gas pipe laying and installation
9) Water irrigation
10) Landscape building and natural environment maintenance
Thee Spud and Hydraulic Mechanism in Amphibious Excavator
The closed vice pontoon of our amphibious excavator integrates Thee Spud and Hydraulic Mechanism, strategically positioned on both sides. This advanced setup allows for precise control over tilting and up-and-down positioning, harnessing the power of hydraulics. The length of the pontoon is carefully tailored to suit the depth of the working area, ensuring optimal performance in various environments.
When in operation, the Thee Spuds are erected and hydraulically driven into the mud, significantly enhancing the stability of the equipment in water. This feature ensures smooth and safe operation, even in challenging aquatic conditions.
Our amphibious excavator, with its integrated Thee Spud and Hydraulic Mechanism, offers unparalleled stability and control, making it the ideal choice for a wide range of water-based excavation tasks.
Pontoon Construction and Durability Features
The pontoon is constructed using AH36 vessel-grade special material and high-strength 6061T6 aluminum alloy, ensuring both durability and robustness. To enhance its longevity, an anti-corrosion treatment is applied, utilizing both sandblasting and shot-blasting techniques.
Furthermore, through meticulous structural design and on-site finite element analysis, coupled with destructive testing, we ensure the pontoon's exceptional bearing capacity and unparalleled safety. This comprehensive approach guarantees optimal performance and reliability, even in the most demanding conditions.
Pontoon Retractable Feature of BONOVO Amphibious Undercarriage
The pontoon retractable is a unique aspect of the BONOVO Amphibious Undercarriage. This feature allows for automatic adjustment of the distance between two pontoons within a specified range. This adaptability ensures optimal performance in various working environments.
Ease of Operation and Safety
Equipped with a hydraulic control system, the beams are designed for simple and safe operation. The operator can easily adjust the pontoon distance to suit the working conditions, enhancing both chassis stability and work efficiency.
Narrow Working Environment Adaptability
In narrow working spaces, the pontoon distance can be minimized to fit the available space. This flexibility allows for seamless operation even in confined areas, maximizing the excavator's utility.
Chain Tensioning and Bolt Tightening
Over time, the chain's pitch may increase due to wear on the pin bushing. This can lead to chain elongation, resulting in chain shedding or slipping during operation. To counter this, we employ a tensioning device that adjusts the sprocket position to ensure proper engagement between the chain pin and driving gear teeth.
Additionally, our pontoon features standard bolt tightening for secure connections. However, cylinder tightening offers a more convenient alternative, providing balanced adjustment and ensuring smoother, more efficient movement.
Amphibious Excavator Parameter

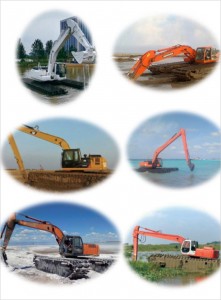

Application of Amphibious Excavator
Application of Amphibious Excavator
Our amphibious excavator for sale, also known as the Float Track, is an exceptional piece of machinery suitable for numerous applications. Manufactured by a trusted company, it's perfect for mining, planting, and marshland clearance in construction zones.
It's also ideal for wetland restoration and reclamation projects. Whether it's for flood control, water diversion, or the transformation of saline-alkali and low-yield soils, this amphibious excavator gets the job done efficiently.
Additionally, it's great for deepening canals, rivers, and estuaries, and clearing lakes, shorelines, ponds, and rivers. The amphibious excavator's versatility extends to excavation work for oil and gas pipelines, irrigation systems, and even landscape construction.
As a trusted manufacturer, BONOVO is confident that our amphibious excavator will meet all your needs and contribute to the preservation of the natural environment.
